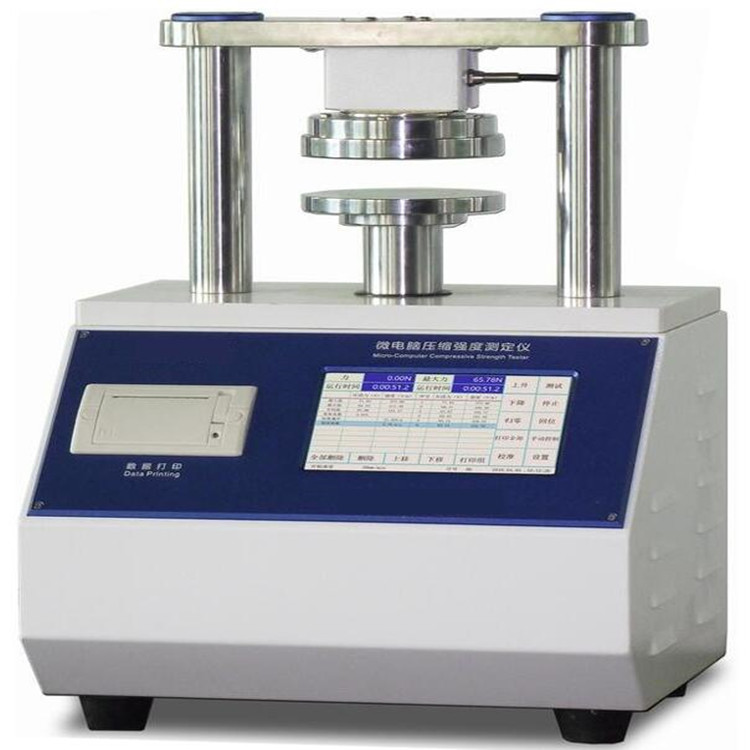

Paper ring compression strength tester

Презентация продукции:

Intelligent cardboard edge compression strength tester, also known as computer measurement and control compression tester, cardboard compression tester, electronic compression tester, edge pressure meter, ring pressure meter, is the basic instrument for cardboard/paper compressive strength testing （that is, paper packaging testing instrument）， equipped with a variety of fixture accessories can test the ring compression strength of base paper, flat compression strength of cardboard, edge compression strength, bonding strength and other tests. In order to paper production enterprises to control production costs and improve product quality.

Implementation standards:

GB/T 2679.8-1995 "Determination of ring compression strength of paper and board"

GB/T 6546-1998 "Corrugated cardboard edge pressure strength determination"

GB/T 6548-1998 "Determination of the bonding strength of Corrugated cardboard"

GB/T 2679.6-1996 "Determination of flat compression strength of Corrugated base paper"

GB/T 22874 "Determination of flat compression strength of single-sided and single-corrugated cardboard"

Основные параметры:

Measuring range: ≤2000N

Unit switching: N, kN, kgf, gf, lbf

Test speed: 12.5 2.5mm/min（or can be set according to customer requirements）

Disc size: 100X 100mm（can be customized according to customer requirements）

Upper and lower disc spacing: 80mm（can be customized according to customer requirements）

Volume （approx.） : 350X 400X 550mm

Power supply: AC220V+10%2A 50Hz

Weight: 65kg
