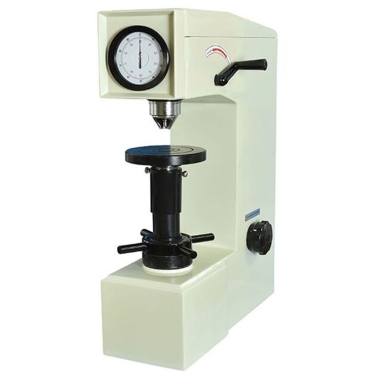

Rockwell hardness tester

Технические параметры:

Initial test force: 3kgf （29.42N），10kgf （98.07N）

Test force: 15kgf（147.1N），30kgf（294.2N），45kgf（441.3N）

60kgf（588.4N），100kgf （980.7N），150kgf（1471N）

Rockwell scale: surname: HRA. HRB, HRC. HRD, HRE, HRF. HRG, HRH, HRK, HRLHRM, HRP, HRR HRS. HRV

Surface's: HRI5N HR3ON, HR45N HR15T. HR30T. HR45T. HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR3OY, HR45Y

Hardness resolution: 0.1HR

Storage time: 2 ——50S

Test space: 285mm vertical, 150mm horizontal

Tolerance limit: set the allowable error limit, automatic identification and alarm beyond the limit

Data statistics: calculate the mean value, mean square error, maximum size value, so that the uncertainty can be directly assessed

Conversion: Test results can be converted to Brinell, Richter, Knoop hardness and tensile strength

Overall dimensions （mm） : 710mmX210mmX830mm

Weight: 95kg

Power supply: 220V/110V, 50Hz, 4A
