Applicable standards：ISO related standards, such as ISO 14505-2, which provide test methods and eval
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

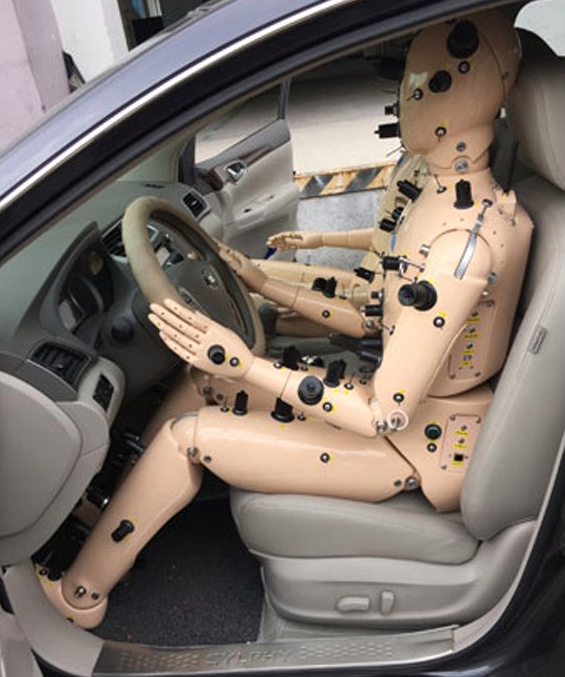

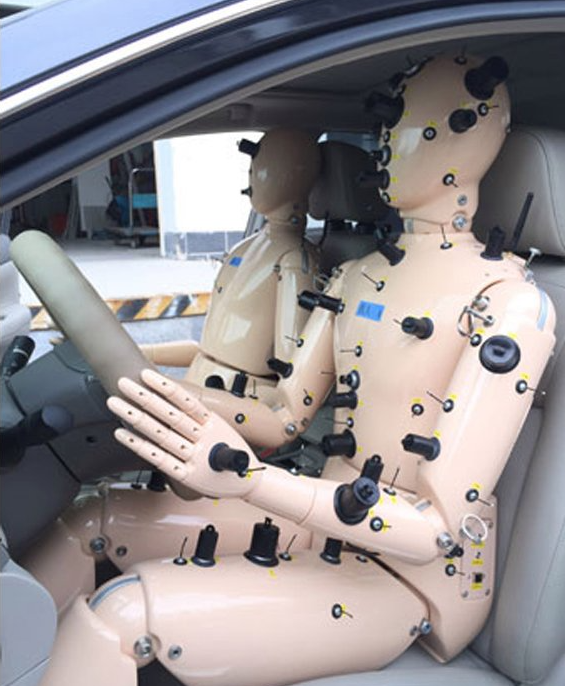

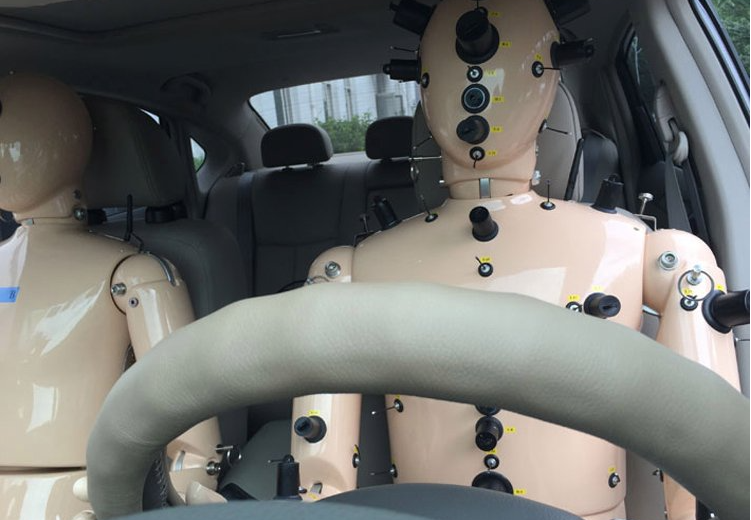

The Automotive Comfort Air Conditioning Dummy Test System is a professional solution designed to evaluate cabin thermal comfort and HVAC performance under various climate and driving conditions.
Developed based on the Chinese 50th-percentile male body dimensions, the dummy accurately simulates real human thermal responses through integrated temperature, humidity, airflow, and radiant heat sensors.
The system supports ISO thermal comfort standards and Berkeley-Zhang thermal sensation models, enabling precise assessment of both local and overall thermal comfort. It is widely used by vehicle manufacturers, research institutes, climate chamber laboratories, and intelligent cabin R&D teams.
Designed according to the Chinese 50th-percentile male body size
Multi-joint body structure: neck, shoulder, elbow, wrist, waist, knee, ankle
Easily adjustable sitting and leaning postures to match real cabin scenarios
Integrated temperature, humidity, air velocity, and radiant heat sensors
Captures dynamic and non-uniform cabin environment changes
Suitable for steady-state and transient thermal comfort evaluation
Supports PMV-PPD, EHT (ISO 14505-2), and the Berkeley-Zhang model
Measures both local and whole-body thermal sensation and comfort
Data visualization: numeric display, Y-T trend charts, and 3D thermal cloud maps
Fabricated with lightweight fiberglass and anti-corrosion materials
Designed for long-term operation in high/low temperature and high-humidity environments
Surface coating prevents fading, deformation, and rust
One controller supports multiple dummies simultaneously
Real-time wired or wireless data transmission
Local data export in CSV format
Cabin HVAC performance testing
Climate chamber simulations
Intelligent cockpit R&D
Ergonomics and human thermal comfort studies
Benchmarking for automotive OEMs and testing organizations
ISO Standards
ISO 14505-2 — Evaluation of thermal comfort in vehicle environments
Other related ISO standards for thermal environment measurement and human thermal response
Thermal Comfort Evaluation Models
Berkeley-Zhang Thermal Sensation Model (optimized for Chinese physiological characteristics)
PMV-PPD index (Fanger model)
EHT – Equivalent Homogeneous Temperature based on ISO 14505-2
These standards ensure compatibility with industry-standard HVAC performance benchmarks and global vehicle testing protocols.
| Item | Description |
|---|---|
| Human Model | Chinese Male 50th Percentile |
| Material | Lightweight fiberglass, corrosion-resistant |
| Joint Design | Adjustable at neck, shoulders, elbows, wrists, waist, knees, and ankles |
| Posture Adjustment | Supports multiple sitting, leaning, and dynamic test positions |
| Parameter | Measurement Range | Accuracy | Resolution |
|---|---|---|---|
| Air Temperature | -20°C to +70°C | ±1.0°C | 0.1°C |
| Airflow Velocity | 0.1–5.0 m/s | — | — |
| Relative Humidity | 0–95%RH (non-condensing) | — | — |
| Radiant Heat | Near zero to >2000 W/m² | — | — |
| Item | Description |
|---|---|
| Communication | Wired and wireless modes |
| Controller Capacity | Supports simultaneous multi-dummy testing |
| Data Display | Numeric display / Y-T charts / 3D cloud visualization |
| Data Export | CSV output |
| Data Management | Real-time monitoring, data storage, historical review |
| Accessory | Description |
|---|---|
| Main Data Controller | Collects and manages data from multiple dummy units |
| Temperature & Humidity Sensors | Measures local and overall cabin climate |
| Air Velocity Sensor Module | Detects airflow from vents and cabin circulation |
| Radiant Heat Sensor | Measures radiant thermal load on the dummy surface |
| Communication Module | Supports wired and wireless data transmission |
| Posture Adjustment Toolkit | Adjusts dummy joints and test postures |
| Calibration Kit | Ensures measurement accuracy for all sensors |
| Protective Transport Case | Safe storage and transport of dummy and components |
Position the dummy inside the vehicle cabin and adjust posture
Connect sensors and communication modules
Configure HVAC test conditions (temperature, humidity, airflow, vent settings)
Start the data acquisition system for real-time monitoring
Export data in CSV or graphical formats upon completion
Perform periodic calibration of all sensor modules
Avoid impact, abrasion, or chemical exposure to the dummy’s surface
Store in a dry, temperature-controlled environment
Use protective transport cases during movement or shipping
Update controller software regularly to ensure optimal performance
