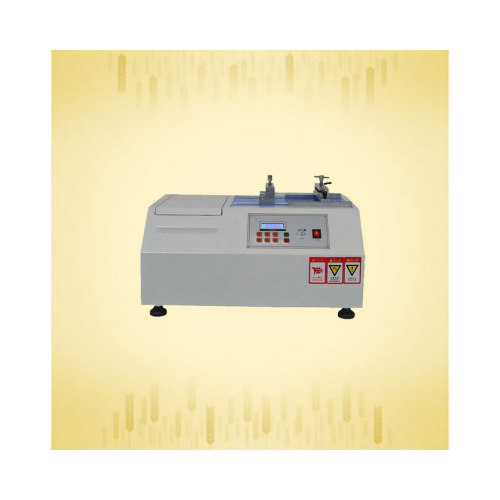

Elastic Tape Fatigue Testing Machine

Презентация продукции:

This instrument is used to test the elasticity of elastic belt after reciprocating movement.

Применение:

Elastic Tape Fatigue Testing Machine is used to determine its repeatedly extend performance under maximum extension for elastic fabric and elastic band, also can be used to determine fatigue resistance of extensible material.

Цель:

The instrument is designed for measuring the extensibility and repeatability of elastic tape, cloth and other elastic materials under the maximum stretch.

Стандарты:

SATRA TM103

Особенности:

Principle: Drive the elastomer sample to repeatedly elongate until it reaches effective growth limit. Regularly evaluate the damage and stop test when it reaches test times or damage exceeded a predetermined level.

Product Specifications:

1. Sample set: 1 set

2. Maximum stroke: 150mm

3. Test clip width: 170mm

4.Speed: （65±5） cpm

5. Counter: six-digit LCD display, 0 —— 999,999

6. Volume: （60X30X40） cm

7. Weight: about 50kg

8. Power supply: AC220V 50Hz
