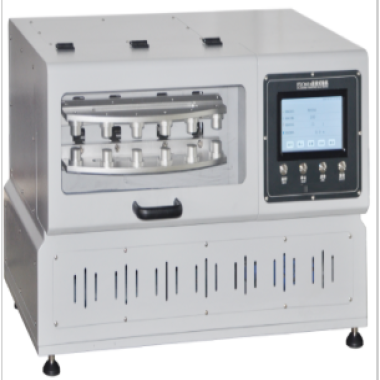

Coated fabric flexure tester

Instrument Purpose

The instrument tests the durability of coated fabrics by rotating a rectangular specimen strip between two opposing cylinders. One cylinder reciprocates along its axis to alternately compress and relax the specimen, creating controlled folding until failure occurs or predetermined cycles are completed.

Критерии соответствия

ISO 7854, GB/T 12586-Method B, BS 3424:9, and other relevant standards.

Основные особенности

1. Precision motor control system for disc rotation and linear motion with adjustable speed and accurate positioning
2. Reliable cam-driven mechanism ensuring stable operation
3. Imported precision guide rails for durable movement
4. User-friendly interface with real-time status display

Technical Specifications

1. Clamping units: 6 sets
2. Rotational speed: 8.3 Hz ±0.4 Hz (498 ±24 rpm)
3. Cylinder specifications: Outer diameter 25.4±0.1 mm
4. Test trajectory: Arc radius R460 mm
5. Stroke distance: 11.7±0.35 mm
6. Clamp width: 10±1 mm
7. Inner clamp distance: 36±1 mm
8. Sample size: 50×105 mm
9. Dimensions: 40×55×35 cm
10. Weight: Approximately 65 kg
11. Power requirement: 220V 50Hz AC

Configuration List

1. Main unit: 1 set
2. Sampling template: 1 piece
3. Certificate of conformity: 1 copy
4. Operation manual: 1 copy
5. Delivery note: 1 copy
6. Acceptance certificate: 1 copy
